P-Series High-Speed Laser Tube Cutting Machine

P-Series delivers industry-leading 120m/min cutting speed. Six-axis CNC control enables complex 3D pipe profiles. Automatic loading/unloading boosts production efficiency. Maintains ±0.1mm precision across all pipe diameters.

Tags:

P-Series High-Speed Laser Tube Cutting Machine application and selection guide

P-Series High-Speed Laser Tube Cutting Machine is designed for industrial laser processing projects that require stable beam control, process repeatability, and reliable integration with production requirements. For ├ Laser Cutting Equipment selection, buyers should compare material type, processing accuracy, automation level, throughput, maintenance access, and after-sales support before confirming the final equipment configuration.

Related laser solutions include Dual-Chuck Laser Tube Cutting Machine, 3D Laser Cutting Machine, Flexible OLED Laser Cutting System. These internal references help users compare similar systems and move naturally between cleaning, cutting, scribing, marking, welding, and photovoltaic laser equipment pages.

P-Series High-Speed Laser Tube Cutting Machine Description

Overview

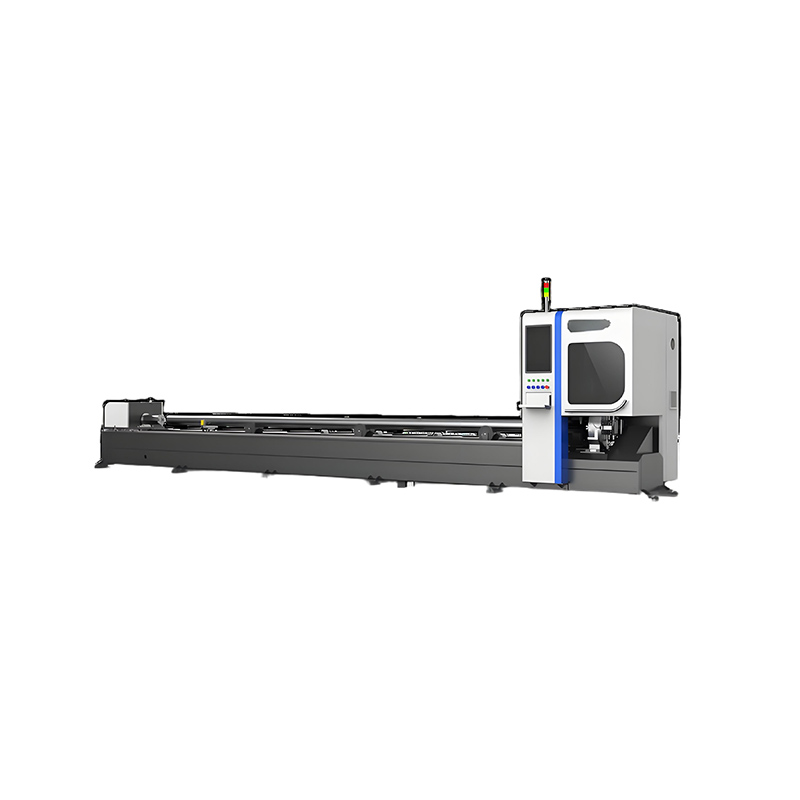

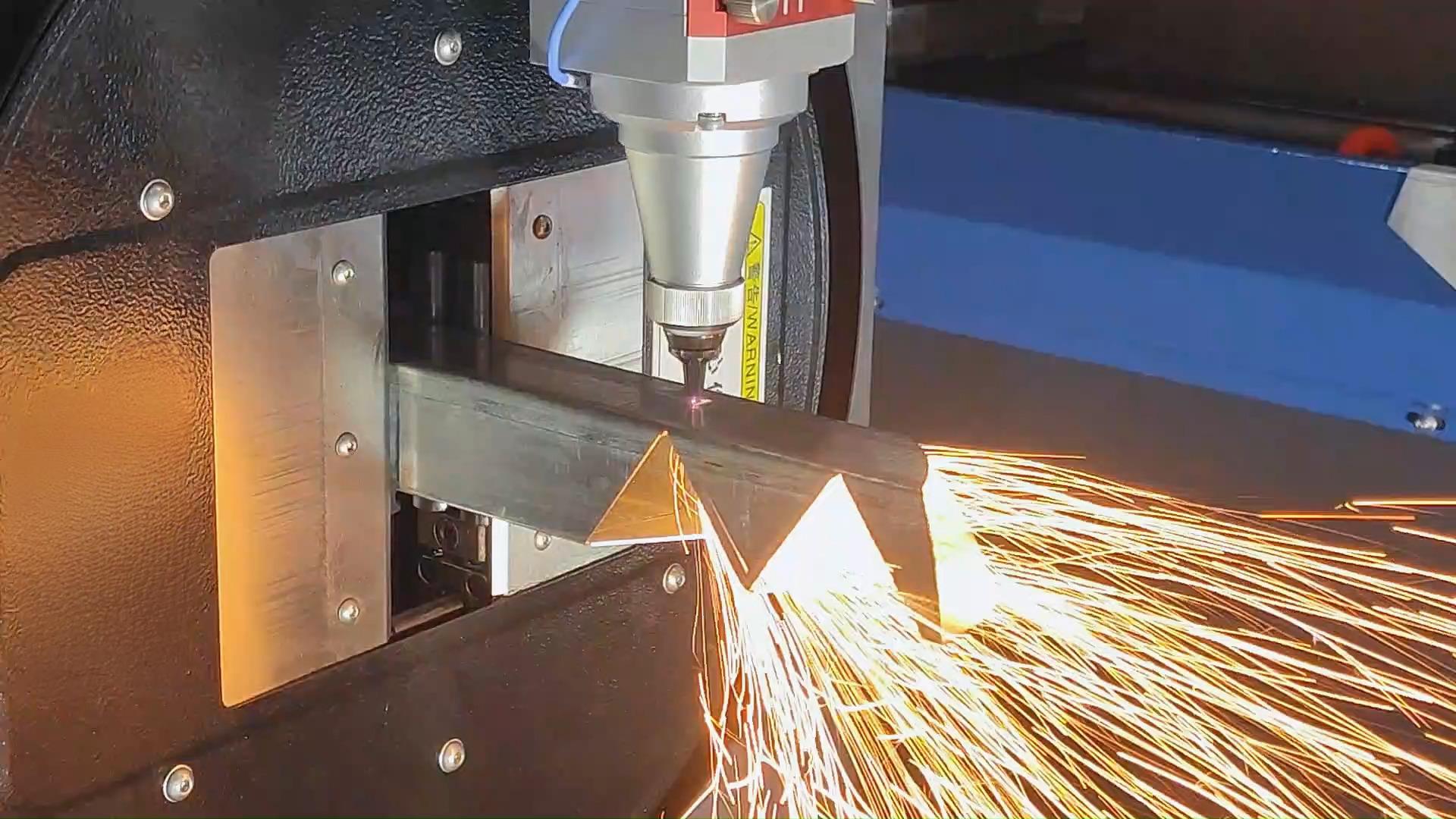

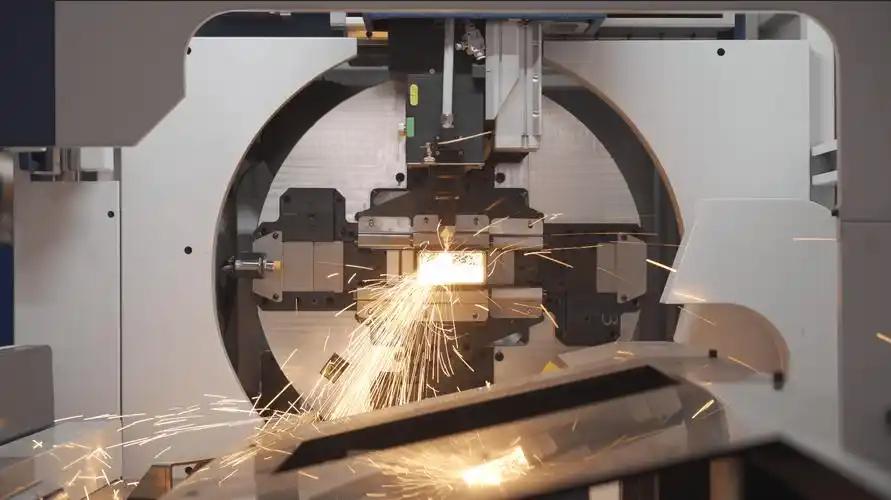

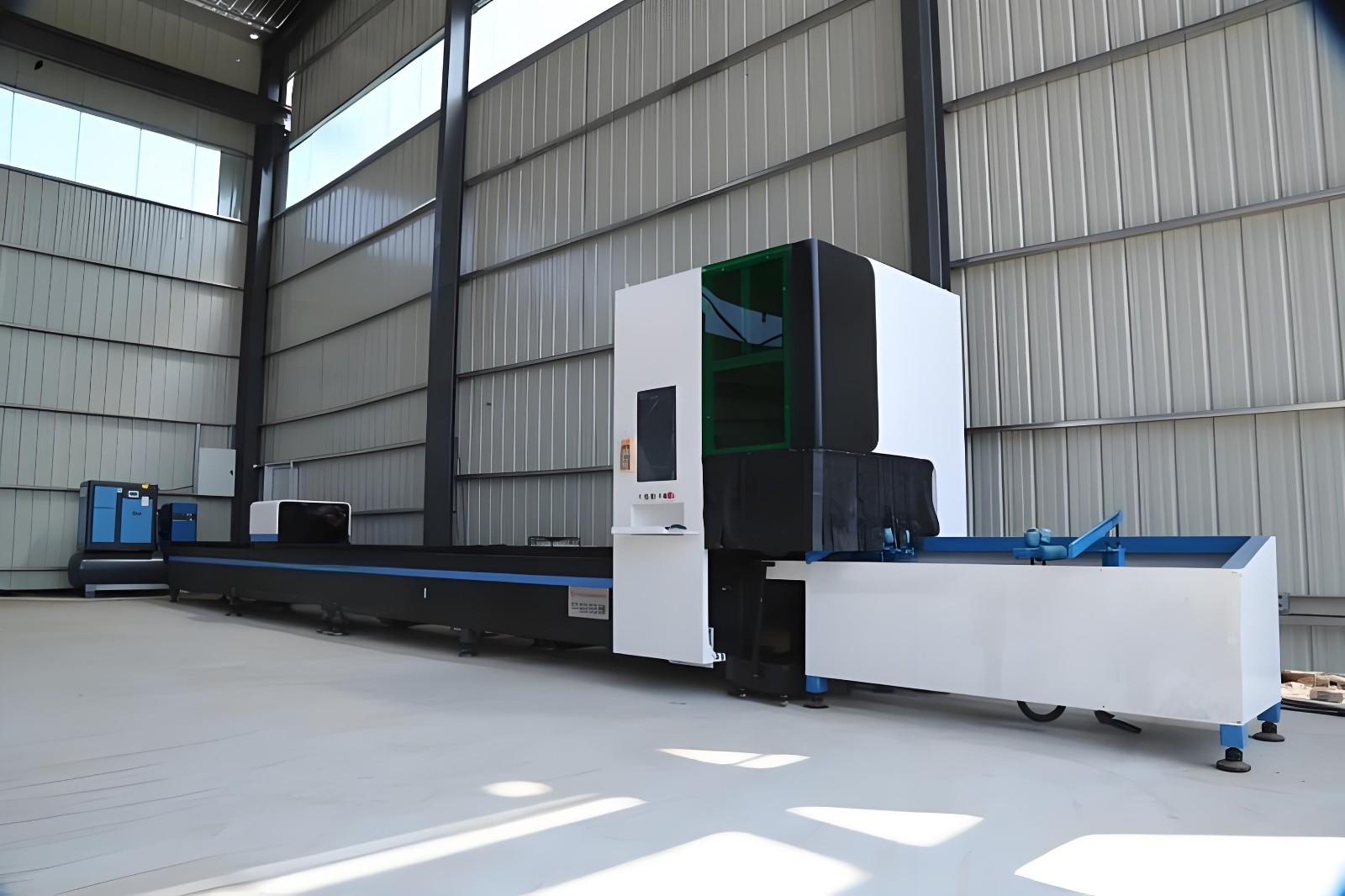

The P-Series high-speed laser tube cutting machine is designed for precision metal tube processing. Equipped with high-power fiber laser and intelligent motion control, it handles round, square, and profile tubes up to 200mm diameter with ±0.05mm accuracy, ideal for automotive, furniture, and machinery industries.

P-Series High-Speed Laser Tube Cutting Machine

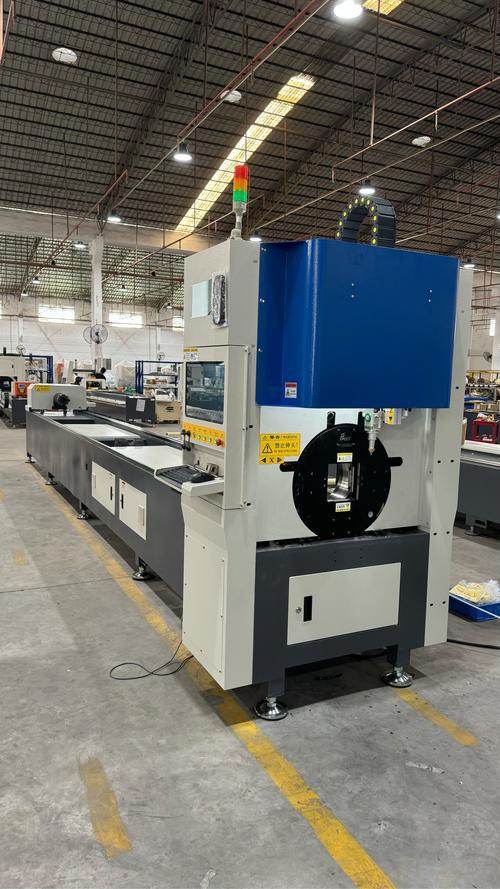

Laser Tube Cutter

Key Features

Laser System:

1000W-6000W fiber laser (optional)
Auto-focus cutting head (±0.02mm)
Cuts carbon steel, stainless steel, aluminum

Motion System:

Servo motor driven
Max tube length 6500mm
Rotary axis accuracy ±0.03°

Control System:

Intelligent CAM software
3D file import for automatic path generation
Real-time quality monitoring

Automation:

Auto loading/unloading (optional)
200-tube capacity magazine
Automatic finished/ waste sorting

Technical Advantages

Performance	Specification	Customer Benefit
Cutting Speed	15m/min (2mm SS)	3x productivity increase
Cutting Accuracy	±0.05mm	Reduces secondary ops
Material Utilization	25% improvement	Lowers material costs
Energy Consumption	60% less than plasma	Significant OPEX saving

Core Performance Rating (10-point scale):
Speed：■■■■■■■■■□ 9
Precision：■■■■■■■■■■ 10
Automation：■■■■■■■■□□ 8
Cost-Effectiveness：■■■■■■■■■□ 9

Typical Applications

Automotive: Chassis tubes, exhaust pipes
Furniture: Chair frames, stair rails
Machinery: Hydraulic tubes, structures
Sports Equipment: Fitness machine tubes

Specifications are indicative only - All equipment is fully customizable to your needs！

How long does it take from equipment ordering to official production when cooperating with Locsen?
The overall timeline varies depending on equipment specifications and production line scale. For standalone equipment, standard models require a 45-day manufacturing cycle, with total duration (including shipping and installation) of approximately 60 days. Customized equipment requires an additional 30 days based on technical requirements. For complete line solutions: • 100MW-level production lines require ~4 months for planning, equipment manufacturing, installation, and commissioning • GW-level production lines require ~8 months We provide detailed project schedules with dedicated managers ensuring seamless coordination. Example: A client's 1GW perovskite production line was completed 15 days ahead of schedule through parallel equipment manufacturing and facility construction.
Does Locsen offer suitable equipment and partnership solutions for startup perovskite companies
Locsen offers a "Phased Partnership Program" specifically designed for perovskite startups. For the initial R&D phase, we provide compact pilot-scale equipment (e.g., 10MW laser scribing systems) bundled with essential process packages to facilitate technology validation and product iteration. During scale-up phases, startups qualify for upgrade benefits: • Core modules from pilot equipment can be traded in with value deduction toward production-line machinery • Optional technical collaboration including process development support and experimental data sharing This program has successfully enabled multiple startups to transition smoothly from lab to pilot production while mitigating early-stage investment risks.
Can Locsen's equipment handle perovskite solar cells of varying sizes? What is the maximum supported dimension?
Locsen's laser equipment features exceptional size compatibility, capable of processing perovskite solar cells ranging from 10cm×10cm to 2.4m×1.2m. For oversized cell processing (e.g., 12m×2.4m rigid substrates), we offer customized gantry-type laser systems with multi-laser-head synchronization to ensure both precision and throughput. • Proven Performance: Successfully processed 1.2m×0.6m cells with industry-leading scribing accuracy (±15μm) and uniformity (＞98%) • Modular Design: Swappable optical modules adapt to varying thicknesses (0.1-6mm) • Smart Calibration: AI-assisted real-time beam alignment compensates for substrate warpage
Does Locsen provide tailored laser solutions for all key production stages of perovskite solar cells?
Yes, Locsen provides comprehensive laser processing solutions covering the entire perovskite solar cell production chain: P0 Laser Marking: For cell identification post-film deposition P1/P2/P3 Laser Scribing: Precision patterning of • Transparent conductive layers (P1) • Perovskite active layers (P2) • Back electrodes (P3) P4 Edge Isolation: Micron-level edge trimming to prevent short-circuiting Tandem Cell Modules: Dedicated laser etching systems for multi-material layer processing Our integrated equipment ecosystem ensures all laser processing requirements are met with: • ≤20μm alignment accuracy across layers • Thermal Affect Zone controlled under 5μm • Modular platforms supporting R&D to GW-scale production
What composition tolerance ranges do Locsen's tools support for variant perovskite formulations?
Locsen's laser systems demonstrate exceptional adaptability to diverse perovskite compositions. • Preloaded Parameters: Optimized settings for mainstream formulations (e.g., FAPbI₃, CsPbI₃) in the laser recipe library enable instant operator access • R&D Support: For novel compositions (e.g., Sn-based perovskites), our team delivers: Custom wavelength/fluence calibration within 72 hours Performance validation ensuring <1% PCE degradation post-processing • Smart Compensation: On-board spectroscopy modules monitor reflectivity in real-time, automatically adjusting: Pulse duration (20-500ns) Beam profile (Top-hat/Gaussian) Energy density (0.5-3J/cm²) Technical Highlights: ▸ Tolerance for ±15% stoichiometric variation in Pb:Sn ratios ▸ Support for 2D/3D hybrid phase patterning ▸ Non-contact processing avoids cross-contamination
