Structural Features

• Monolithic Frame Design: High-rigidity welded bed with precision aging treatment ensures long-term stability and vibration resistance for heavy-duty continuous operation.

• Modular Optical Path: Fully enclosed fiber transmission with auto-calibration minimizes energy loss and enhances maintenance accessibility.

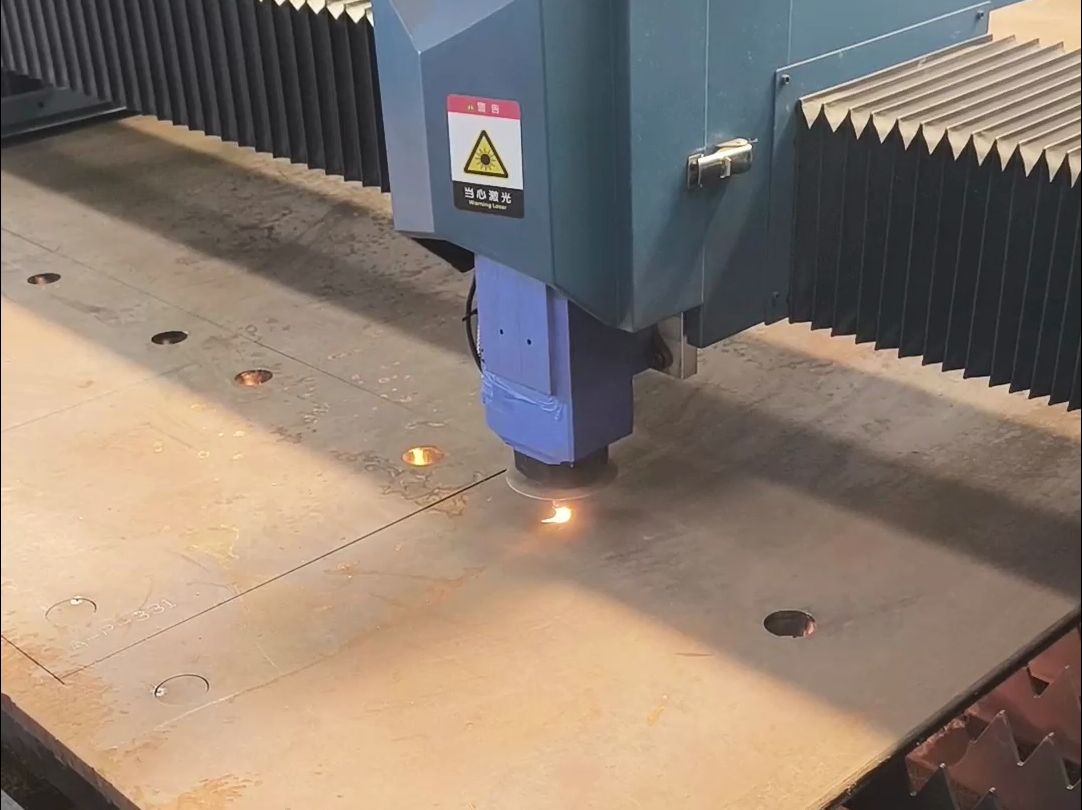

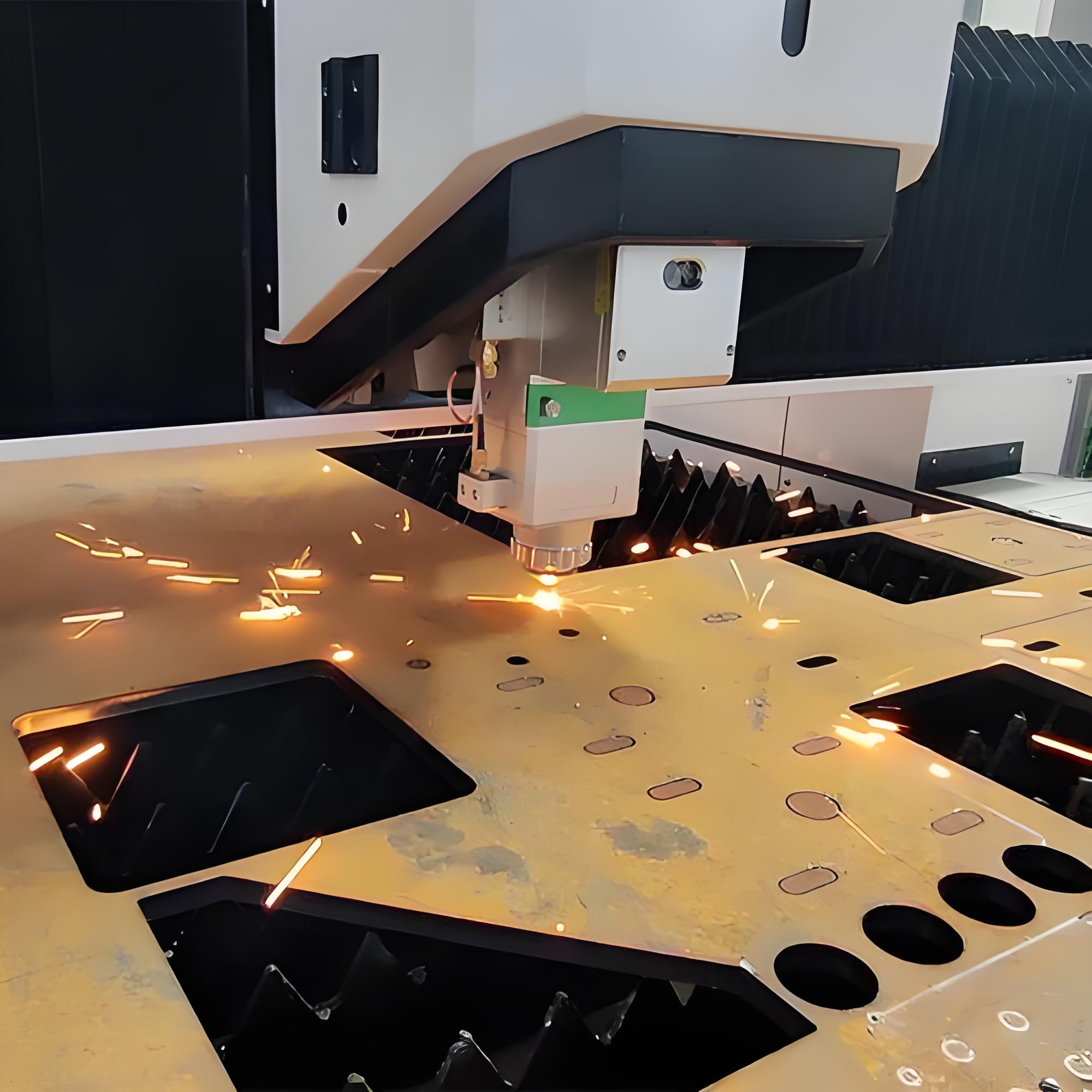

• Smart Cutting Head: Servo-driven dynamic adjustment and capacitive height tracking enable real-time focal length control, supporting piercing, beveling, and complex contours.

• Advanced Dust Extraction: Multi-stage filtration with negative-pressure suction effectively captures cutting fumes, maintaining a clean workspace.

Technical Advantages

• High Power Density: Multi-module fiber laser (1.5kW~20kW) with near-diffraction-limited beam quality (M²≤1.2) boosts cutting speed by 30%+ compared to conventional solutions.

• Adaptive Process Database: Pre-loaded material parameters auto-optimize power, gas pressure, and speed for carbon steel, stainless steel, aluminum, and other metals.

• Real-Time Monitoring: Infrared thermography and vision-assisted positioning detect cutting status, auto-correcting path deviations to achieve ±0.03mm accuracy.

• Energy Efficiency: Power conversion rate ≥35% with smart idle mode reduces overall energy consumption by 20%.

Typical Applications

• Sheet Metal Fabrication: Precision contour cutting for automotive parts and enclosures (minimum kerf: 0.1mm).

• Aerospace: High-precision processing of refractory materials (titanium/nickel alloys) with burr-free edges.

• Rail Transport: Bevel cutting of thick stainless steel (≤40mm) with 89°+ edge perpendicularity.

• New Energy: Rapid processing of battery aluminum cases and copper tabs (heat-affected zone <0.1mm).

Specifications are indicative only - All equipment is fully customizable to your needs！
